19″ fiber optic patch panel 2U, 48 SC duplex, with splice tray

50.00 € without VAT

High-quality sliding drawer-type fiber optic patch panel designed for fiber termination, splicing, and cable management applications. Suitable for installation in standard 19″ network, telecommunications, and automation cabinets.

Supporting up to 48 SC duplex adapters (96 fibers) or 24 LC quad adapters (96 fibers), the patch panel provides a compact and efficient solution for high-density fiber optic installations.

Features

• Supports 48 SC duplex ports (up to 96 fibers)
• Compatible with SC duplex or LC quad adapters

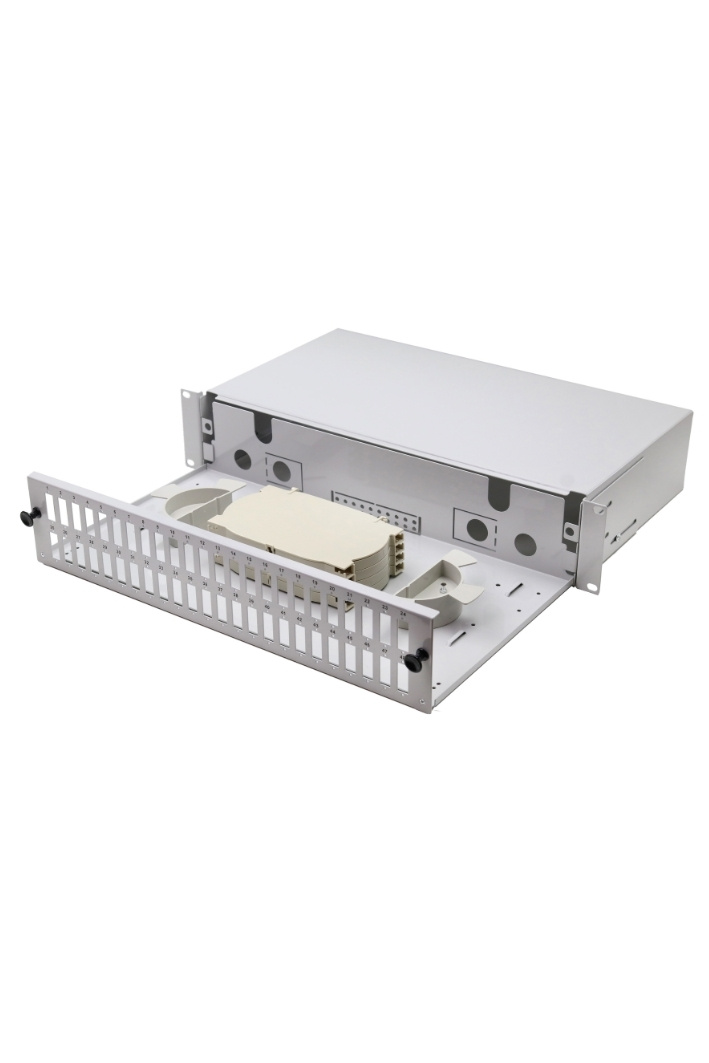

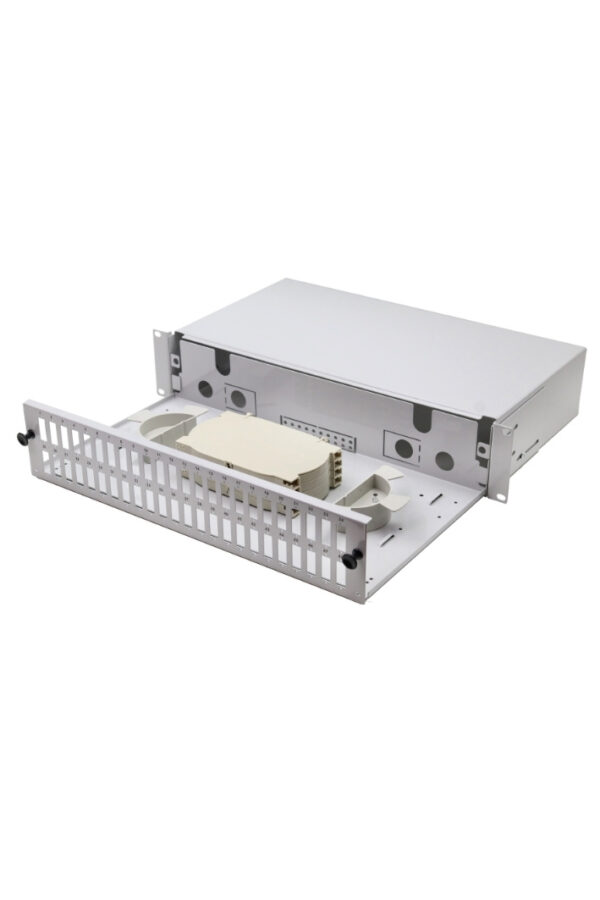

• Sliding drawer construction for easy access during installation and maintenance

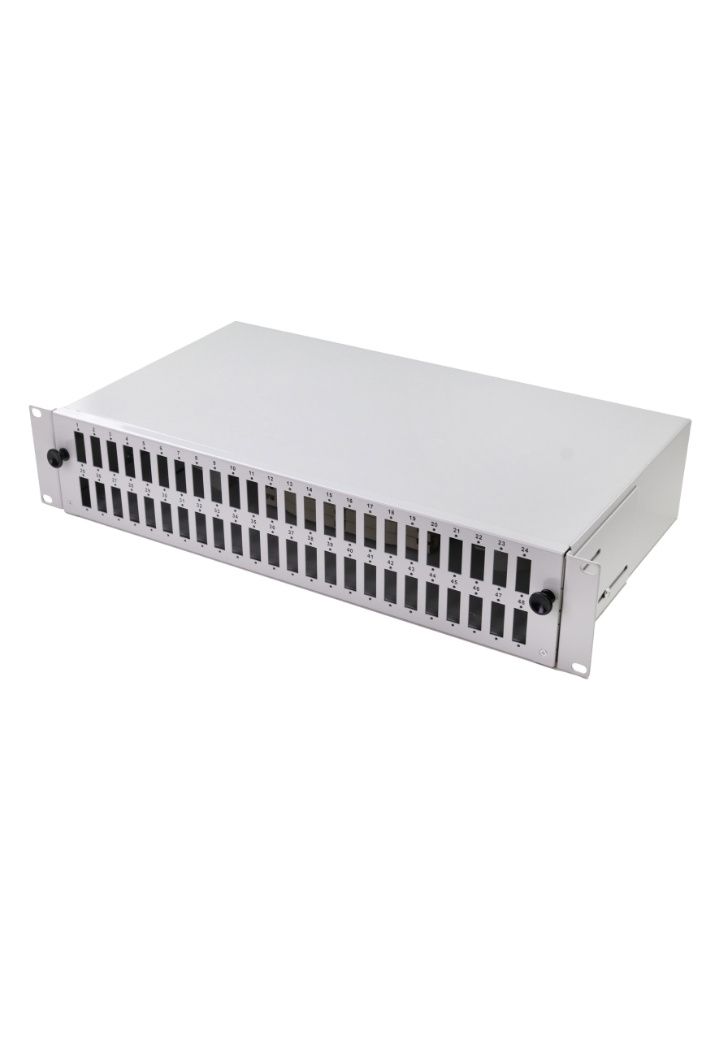

• Front panel with printed port numbering for simplified identification
• Individual port labeling capability
• Adjustable mounting depth for 19″ cabinet installation
• Suitable for indoor applications
• Durable steel sheet construction
• Standard finish: RAL 7035 Light Grey (other colors available upon request)

Package Includes

• 4 splice trays (splice cassettes)
• Cable management organizer
• 4 × PG13 cable glands
• 4 × cable retention clips (bunny clips)
• Adapter mounting screws
• M6 cabinet mounting screws

Note

Optical adapters and splice protection sleeves are supplied separately and are not included with the patch panel.

Technical Specifications

Mounting: 19″ rack mount
Type: Sliding drawer
Material: Steel sheet
Color: RAL 7035 (Light Grey)
Indoor use
Capacity: Up to 96 fibers (48 × SC duplex ports)
