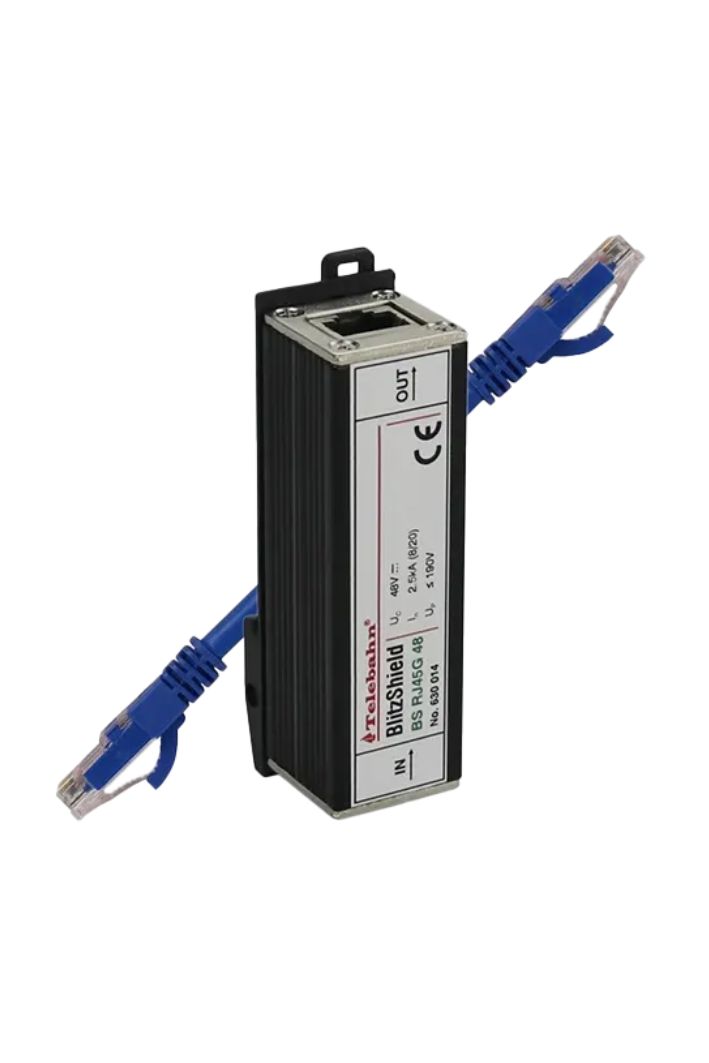

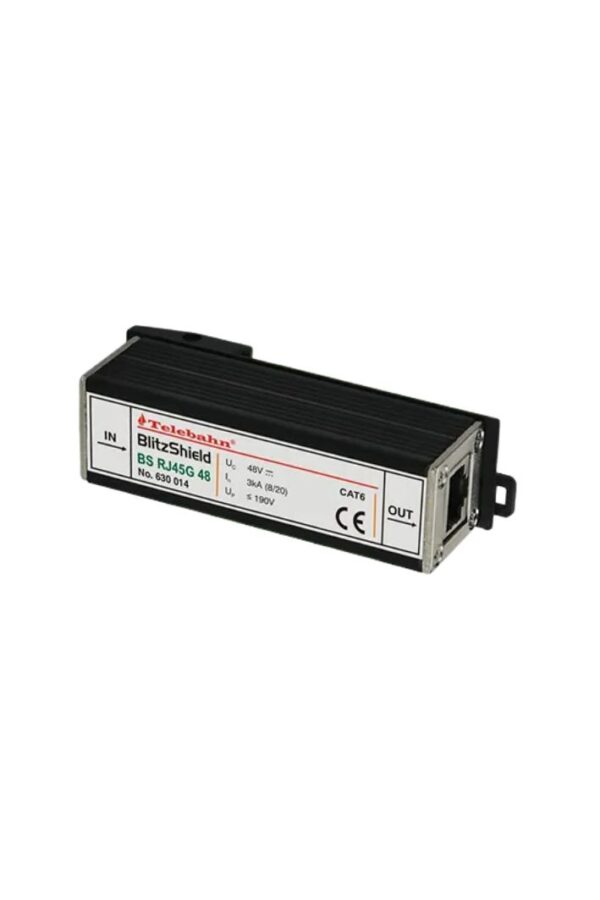

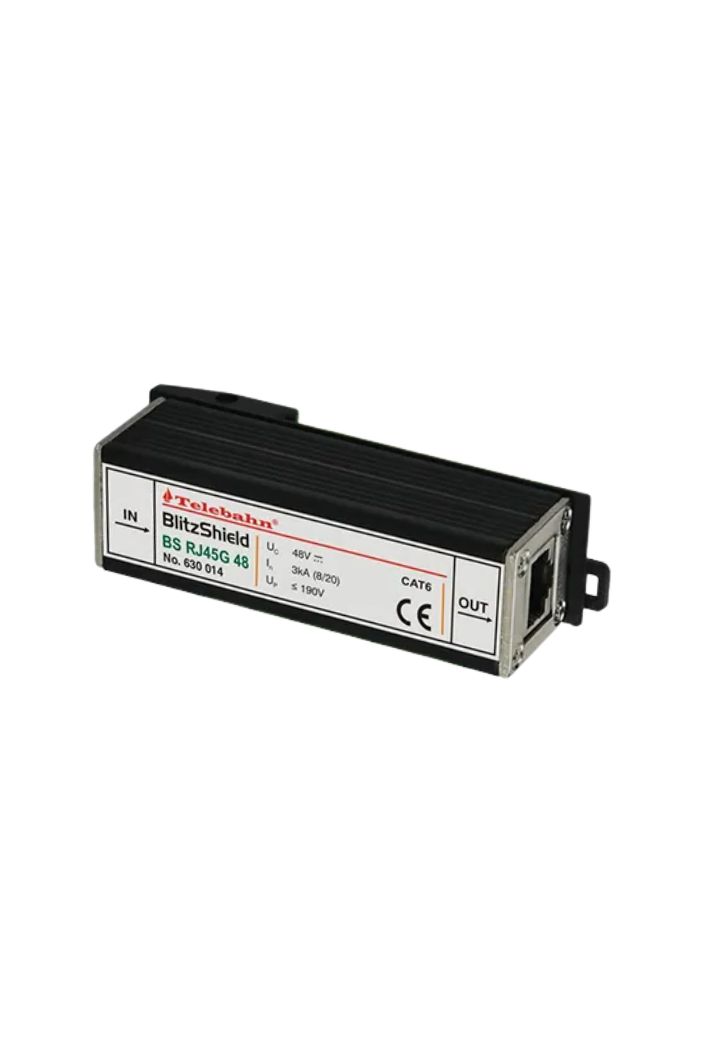

Telebahn BS RJ45G 48(A) CAT6 PoE++ Ethernet Surge Protector

39.14 € without VAT

Telebahn BS RJ45G 48(A) is a professional surge protection device for Gigabit Ethernet, VoIP and PoE++ (4PPoE) networks. The device is designed to protect switches, routers, HUB devices, modems and other network equipment against lightning impulses and switching surges.

The protection device complies with CAT6 / Class E requirements and supports data transmission rates up to 1000 Mbit/s and a bandwidth of 250 MHz. Suitable for IEEE 802.3af/at/bt PoE systems.

Main Technical Data:
Nominal voltage: 48 V
Maximum continuous voltage: 48 V DC / 34 V AC
PoE voltage: up to 58 V
Nominal current: 1 A
Lightning impulse current Iimp (10/350 μs): 0.5/4 kA
Nominal discharge current In: 2.5 kA
Total discharge current: 10 kA
Protection level: ≤190 V (L-L), ≤600 V (L-PG)
Bandwidth: 250 MHz
Data transmission rate: 1000 Mbit/s
Capacitance: ≤165 pF (L-L), ≤255 pF (L-PG)
Insertion loss: ≤2 dB
Operating temperature: -40 °C … +80 °C
Connections: Shielded RJ45
Enclosure: Aluminium

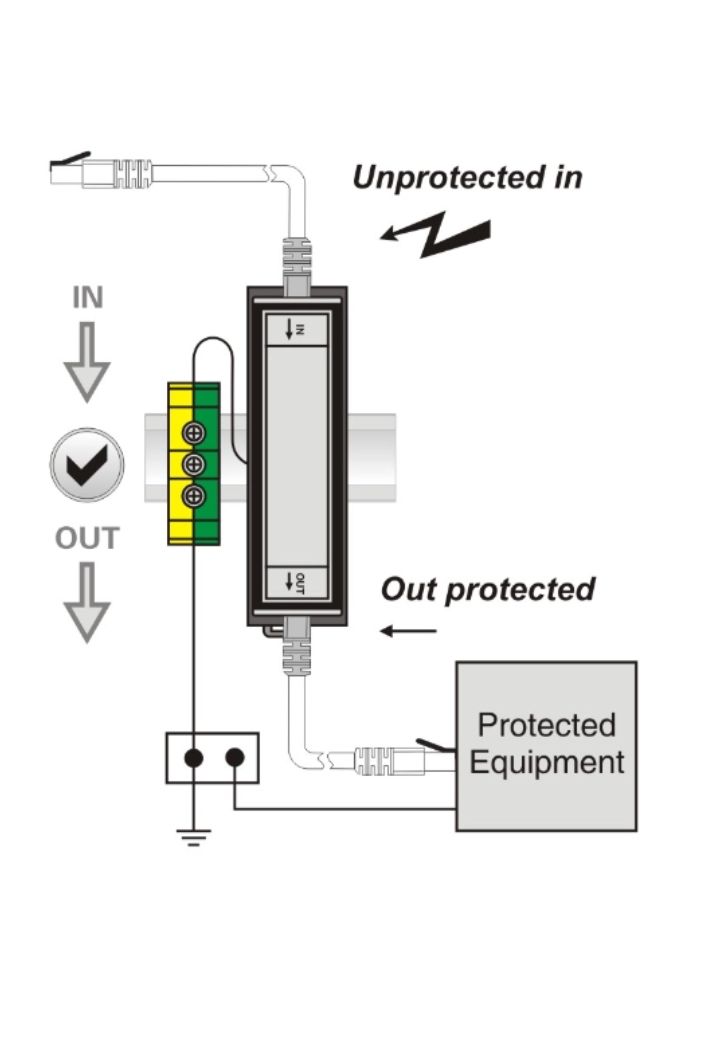

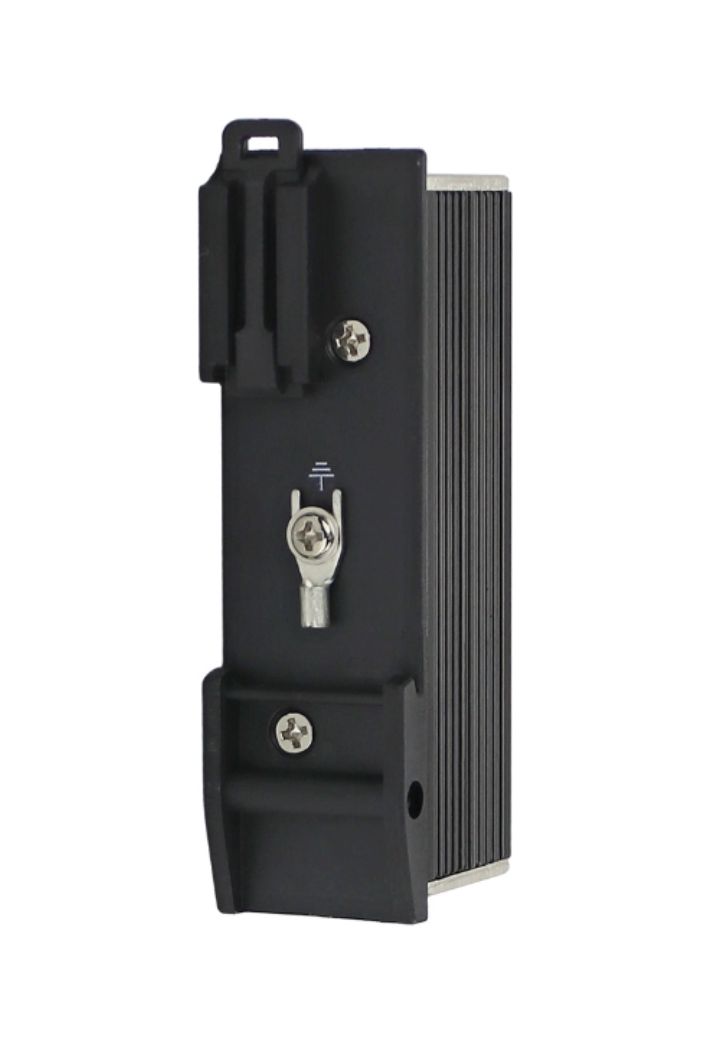

Mounting: 35 mm DIN rail

Complies with IEC 61643-21 and EN 61643-21 standards. Certification: CE.
