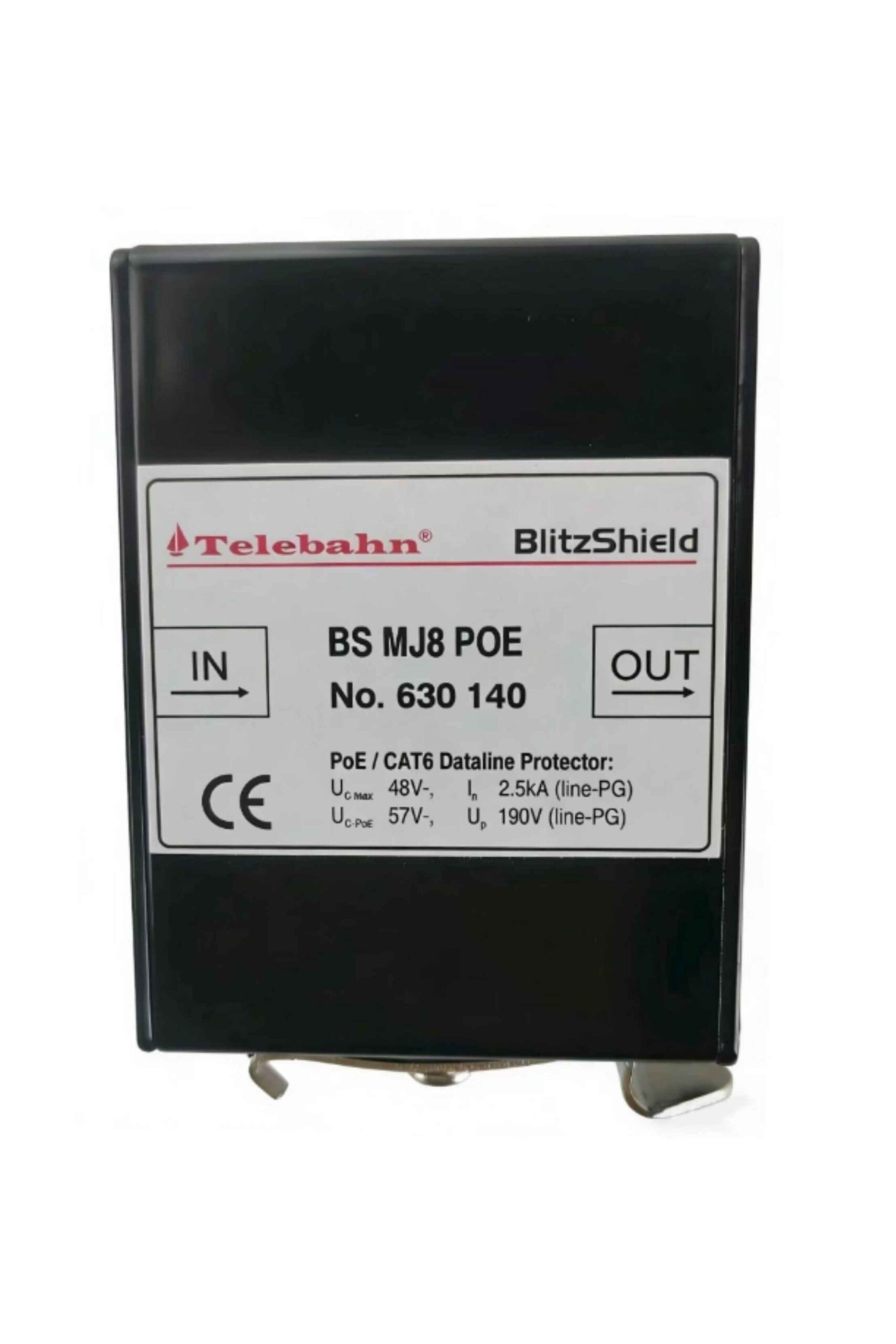

Telebahn BS MJ8 POE RJ45 PoE Data Line Surge Protector

39.29 € without VAT

Telebahn BS MJ8 POE is a compact Ethernet and PoE data line protection device designed for industrial and commercial network systems. The device protects network equipment against lightning impulses and transient overvoltages.

It supports 10/100/1000 Mbps Ethernet networks and PoE systems according to IEEE 802.3af/at standards.

Main Technical Data:
Nominal voltage: 48 V
Maximum continuous voltage: 60 V
Nominal current: 1 A
Nominal discharge current (L-L): 0.5 kA
Nominal discharge current (L-PG): 2 kA
Lightning impulse current Iimp: 0.5 kA
Protection level Up: ≤20 V
Bandwidth: >100 MHz
Data transmission rate: 1000 Mbit/s

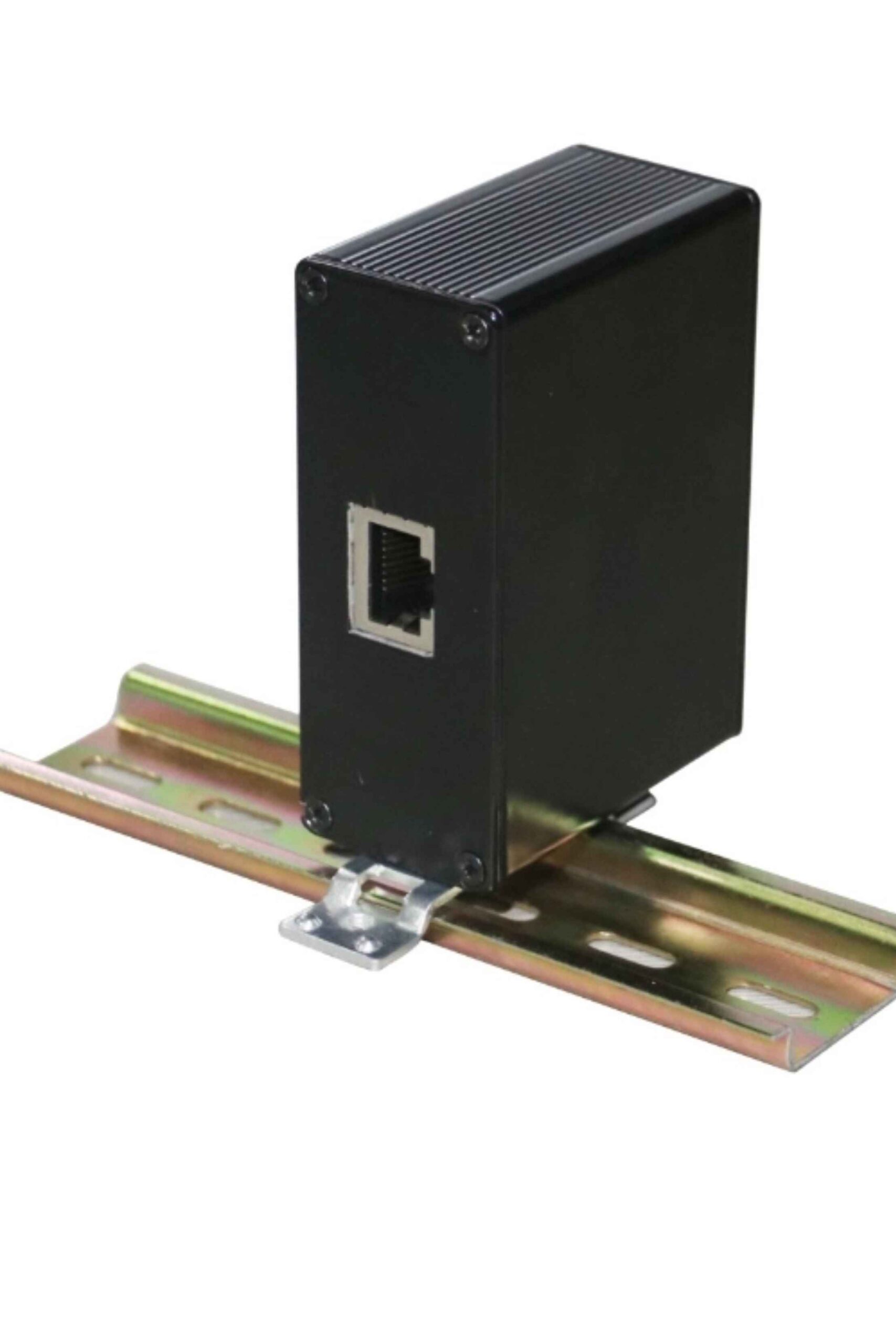

Insertion loss: <1 dB Configuration: 8 wires + shield Enclosure: Aluminium Mounting: 35 mm DIN rail Operating temperature: -40 °C ... +80 °CComplies with IEC 61643-21 and GB 18802.21 standards. Certifications: CE and RoHS.
