STANDART FP Wall series cabinets, Heights from 4U to 27U

57.83 € – 268.00 € without VAT

19″ network wall cabinets with front glass doors. The cabinet structure is dismantable, so you can choose an assembled or unassembled cabinet. Cabinet sides and doors are removable and lockable. If necessary, the front door can be changed to a metal one. Cable entry holes at the bottom and top. Perforated holes in the roof of the cabinet, for installing 120mm fans. Maximum wardrobe load: 60kg.

Advantages:

• Dismantable structure, can be ordered unassembled for easier transportation
• Mounted on the wall, with a patented easy installation method
• Removable and lockable side panels
• Cable entries in the bottom and roof of the cabinet

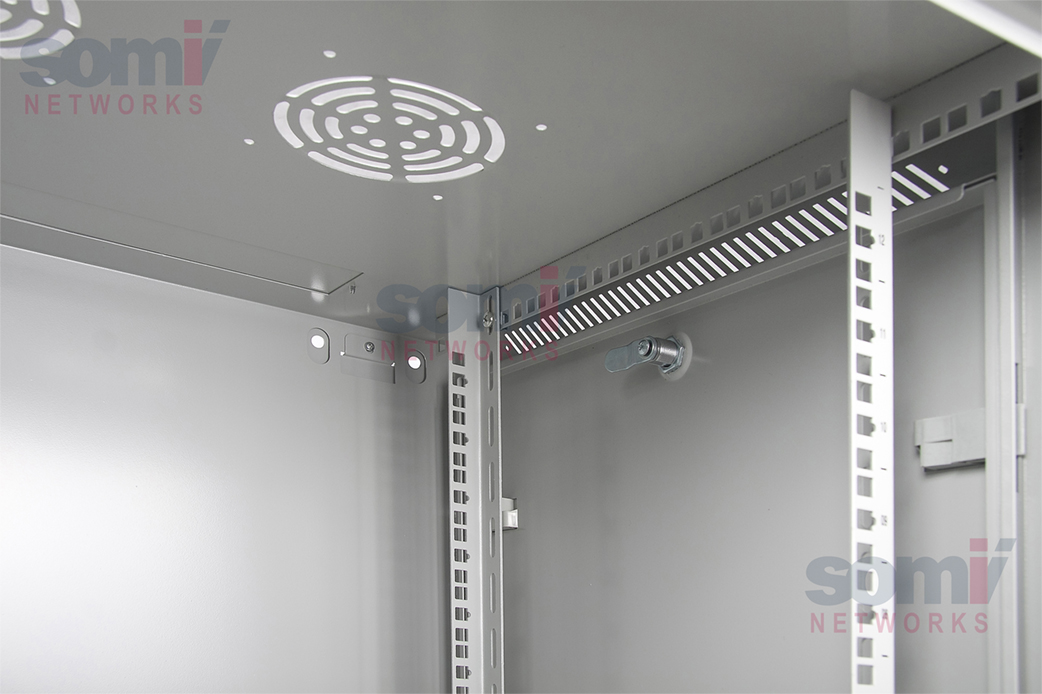

• Spaces for 120mm fans are provided
• 180-degree opening door, the direction of which can be changed
• It is possible to change the front door to a metal one

Technical characteristics:

• Material: SPCC cold rolled steel
• Metal thickness: frames 1.5mm, other parts 1.2mm
• Glass door thickness: 5mm tempered tinted glass
• Surface coating: Degreasing, phosphorization, powder coating
• Degree of protection: IP20
• Available heights: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U
• Available widths: 600mm
• Available depths: 450mm, 600mm, 800mm
• Color: Gray (RAL 7035)
• Load: 60kg

Compliance with standards:

ANSI/EIA RS-310-D, IEC297-1, IEC297-2, GB/T3047.2-92, IEC 60297-3-100, DIN41497-1, DIN41494-7, DIN 41494-8, DIN IEC 60297-3 -100.
