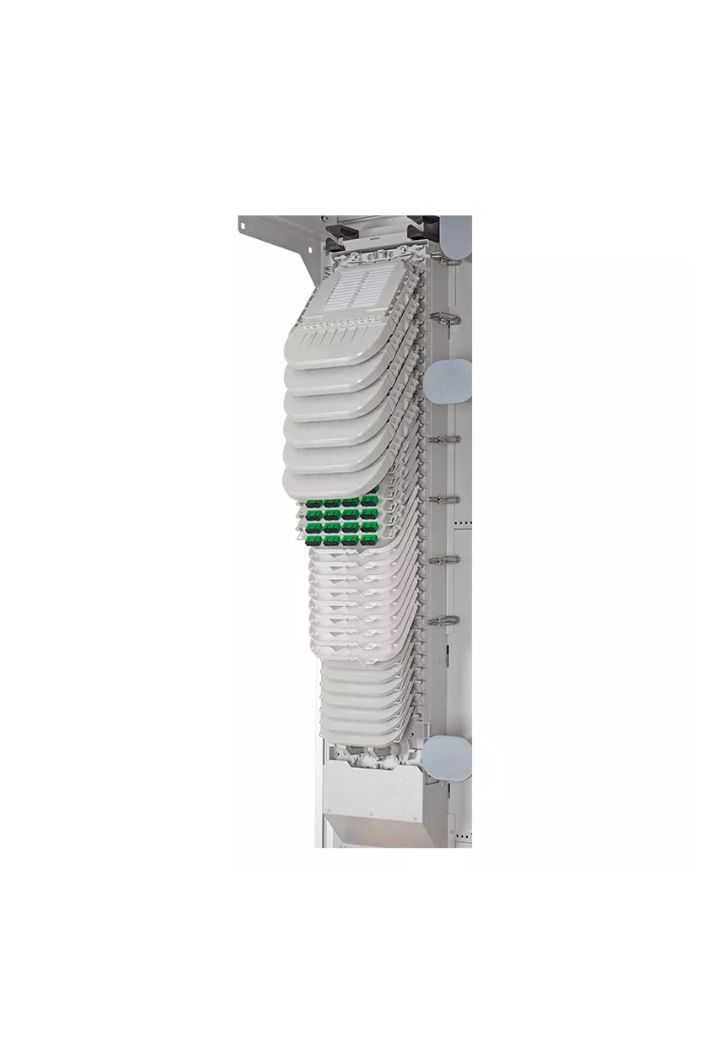

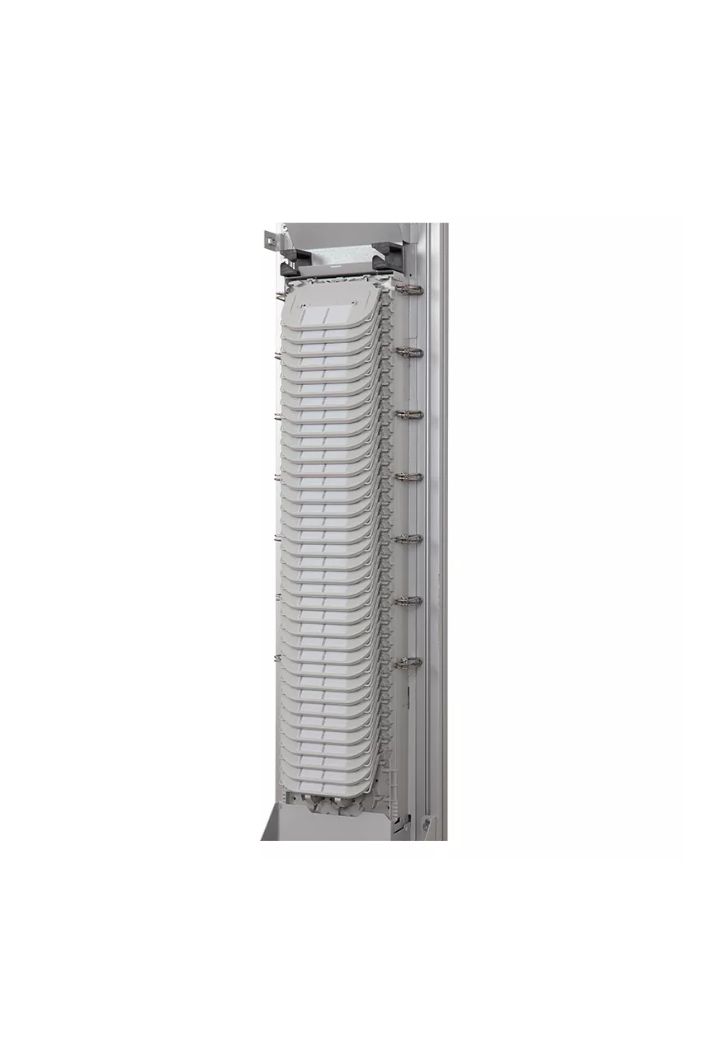

MICOS Subrack for Fiber High Density Cabinets MDO

329.14 € without VAT

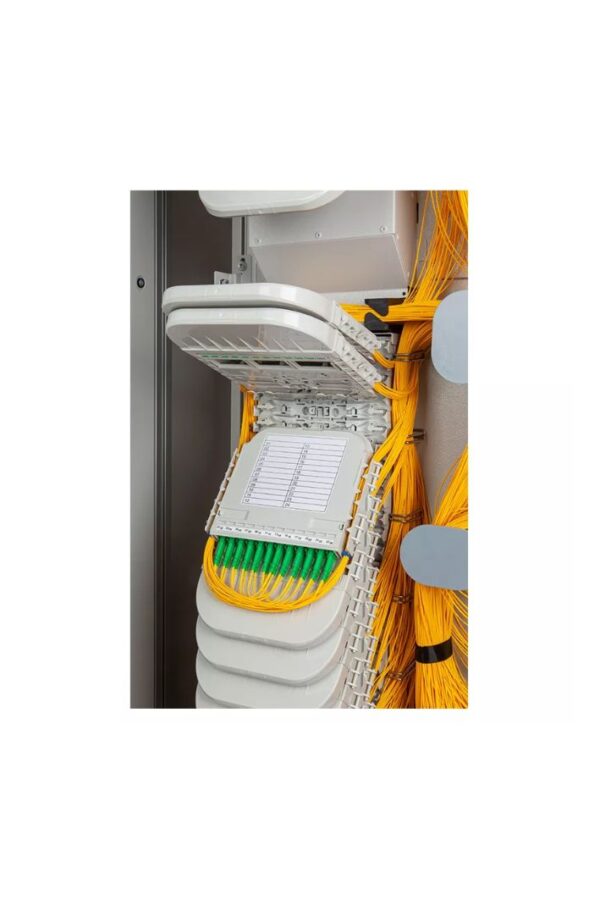

The Subrack for Fiber High Density Cabinets MDO is used to store up to 864 splices and to terminate up to 288 fibers with SC connectors or 576 fibers with LC connectors using the FibeRoadTM System. It is a modular solution with a tilt-out system without cable splitters and without drawing into protective tubes. *Capacity of up to 864 splices (for KM 4 and KM 9).
*Capacity of up to 216× SC / 432× LC connector (for KM 5).

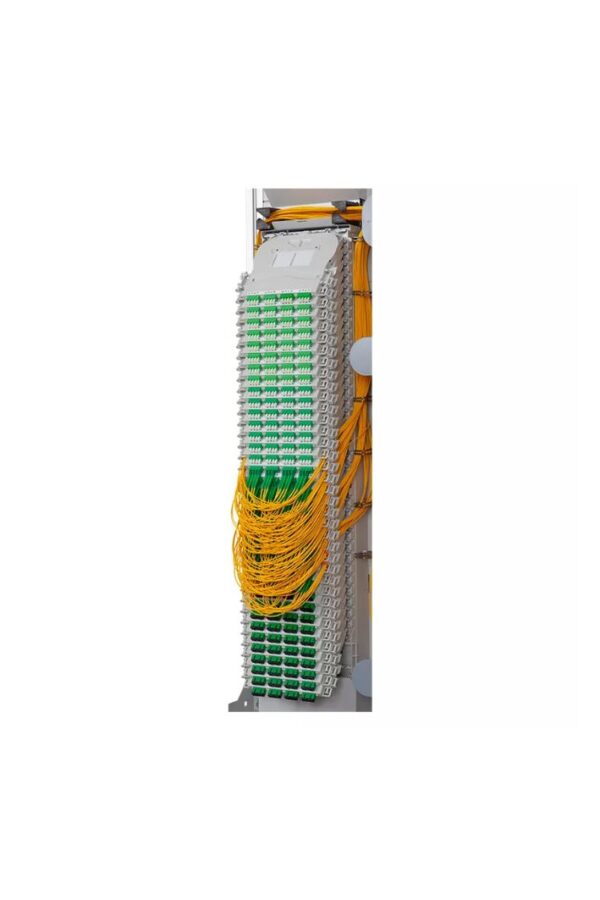

*Capacity of up to 288× SC / 576× LC connector (for KM 7).
*Ability to mix & match the Fiber Optic Trays KM 4, KM 5, KM 6, KM 7, KM 9.

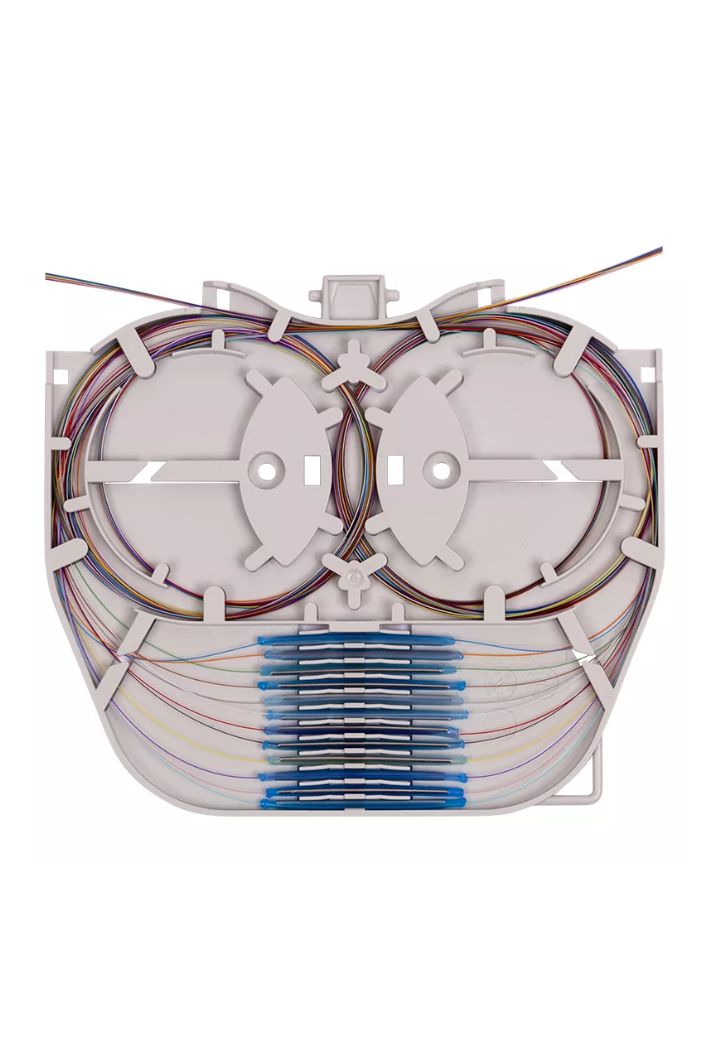

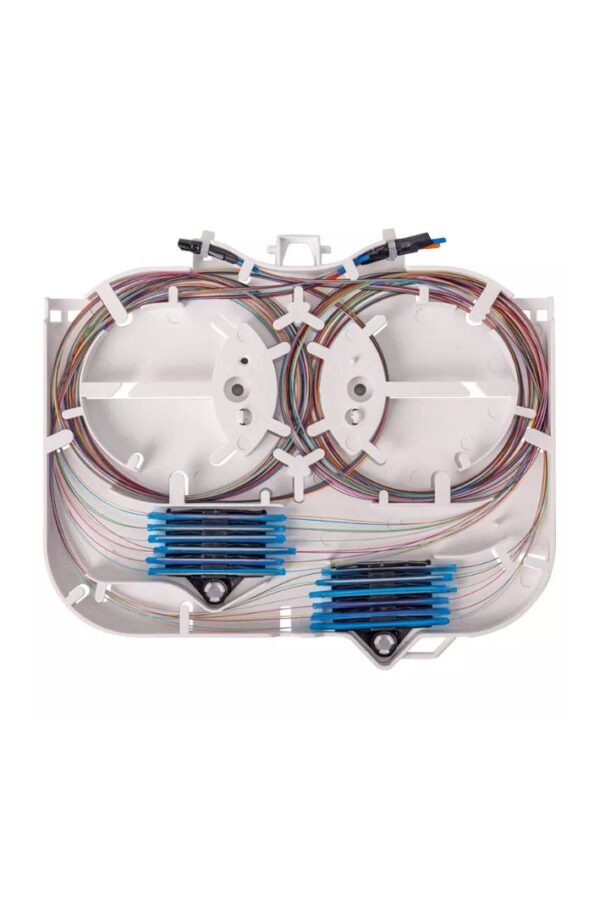

*KM 4 and KM 6 for up to 24 splices.
*KM 5 for up to 12× SC / 24× LC connector.
*KM 7 for up to 8× SC / 16× LC connector (for GPON).
*KM 9 for up to 12 splices.
*Ability to gradually add trays as required.
*Modular solution without cable splitter functionality.

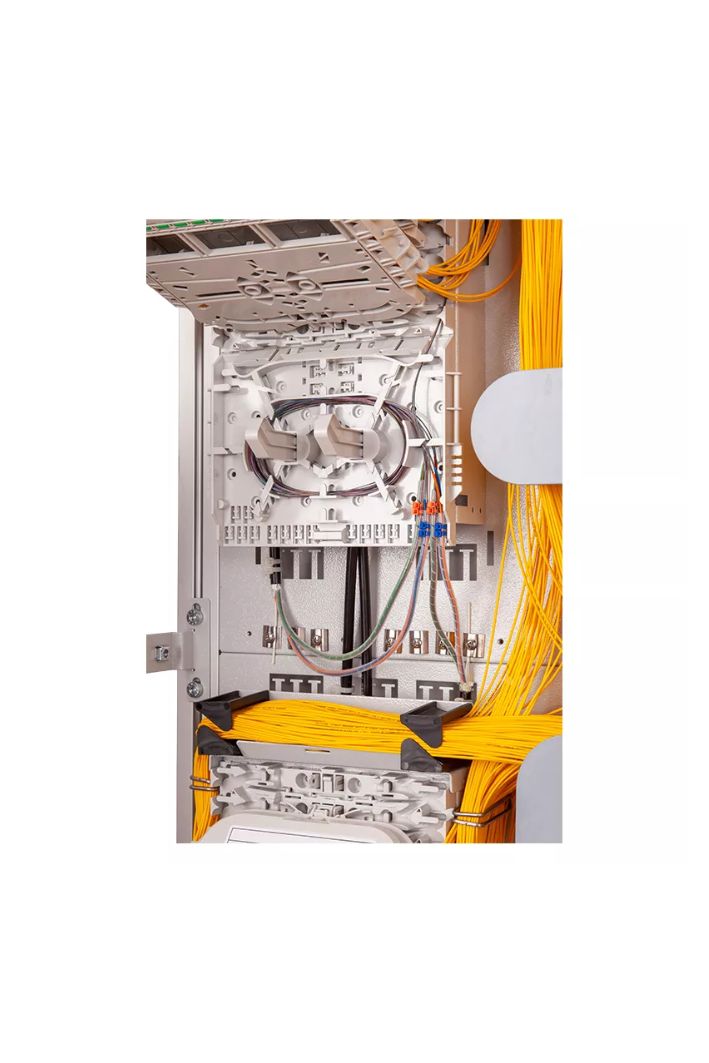

*Optional placing of PLC Splitters (outside a tray).
*Increased corrosion resistance (aluzinc).
*FibeRoadTM System compatible.
*Suitable for ribbon fibers.
*Suitable for all types of networks. *Inputs / Outputs (quantity × range) 1× (230 × 55) mm.
*Material painted steel sheet (aluzinc).
*Color light gray RAL 7035.
*Dimensions (H × W × D) 953 × 240 × 101 mm.
*Flat Pack Weight 4.5 kg.
*Environment indoor.v
*Number of Splices: 1–12
13–24
25–48
49–72
73–96
97–144
145–288
289–576
577–864.
*Number of Connectors: 1–12
13–24
25–48
49–72
73–96
97–144
145–288
289–576.
*Connector Type: LC, SC.
