MICOS Fiber High Density Cabinet MDO 300

3,016.65 € without VAT

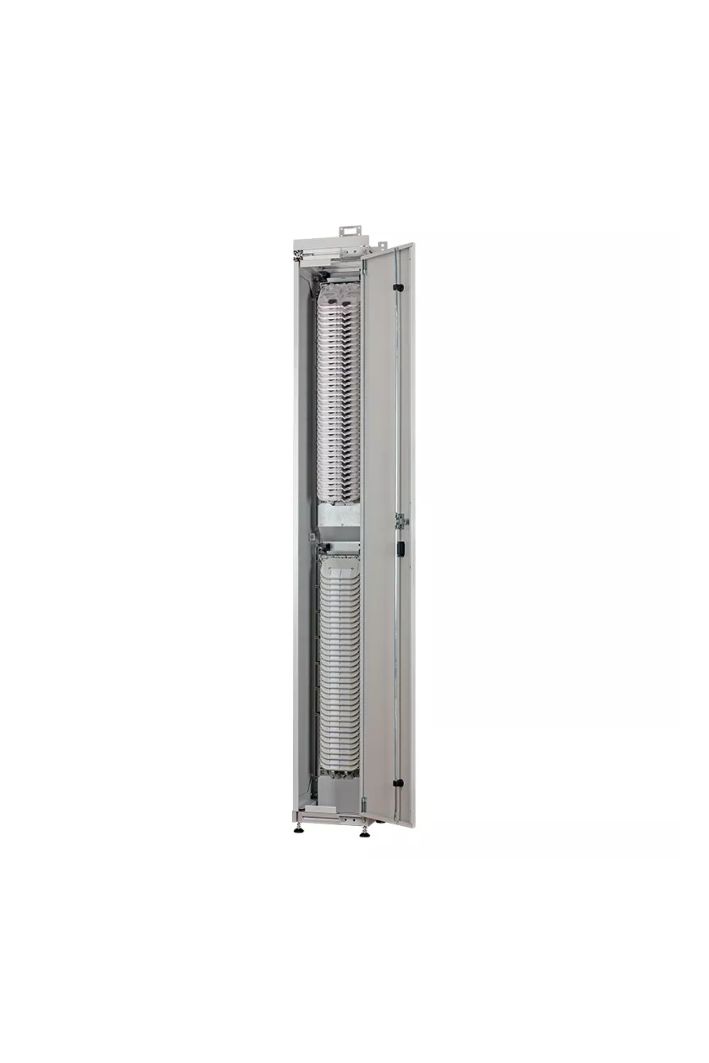

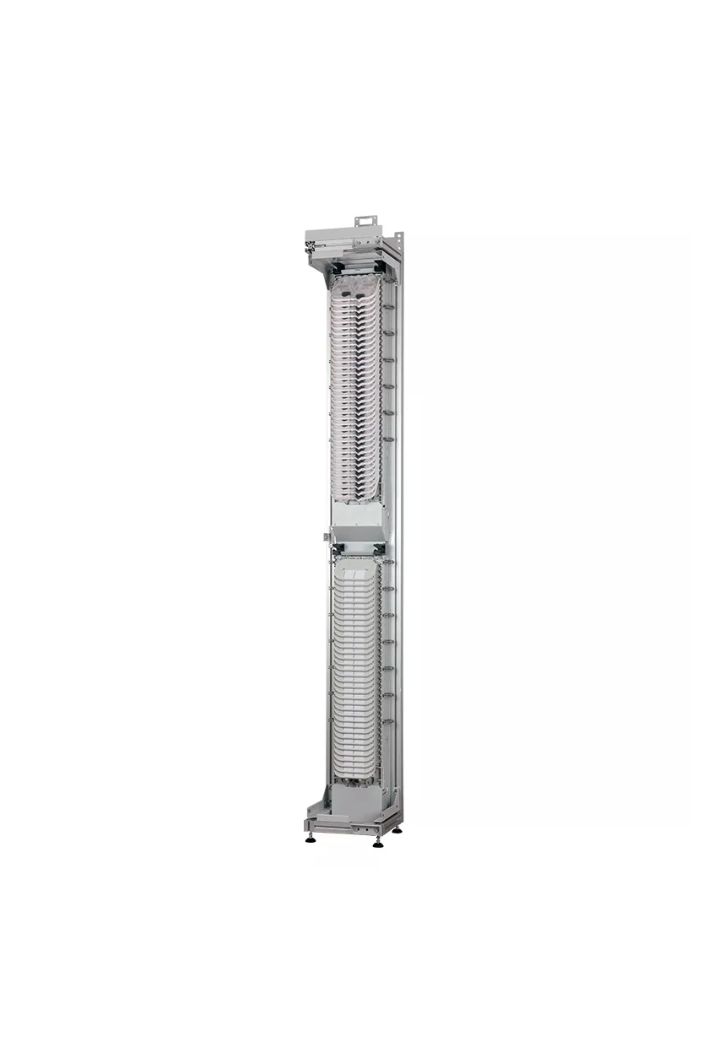

The Fiber High Density Cabinet MDO 300 is used to store up to 1,728 splices and to terminate up to 576 fibers with SC connectors or 1,152 fibers with LC connectors using the FibeRoadTM System. It is a modular solution without cable splitters and without drawing into protective tubes, with a uniform patch cord length of 4 m. The cabinet can be used in central office and for all types of networks.

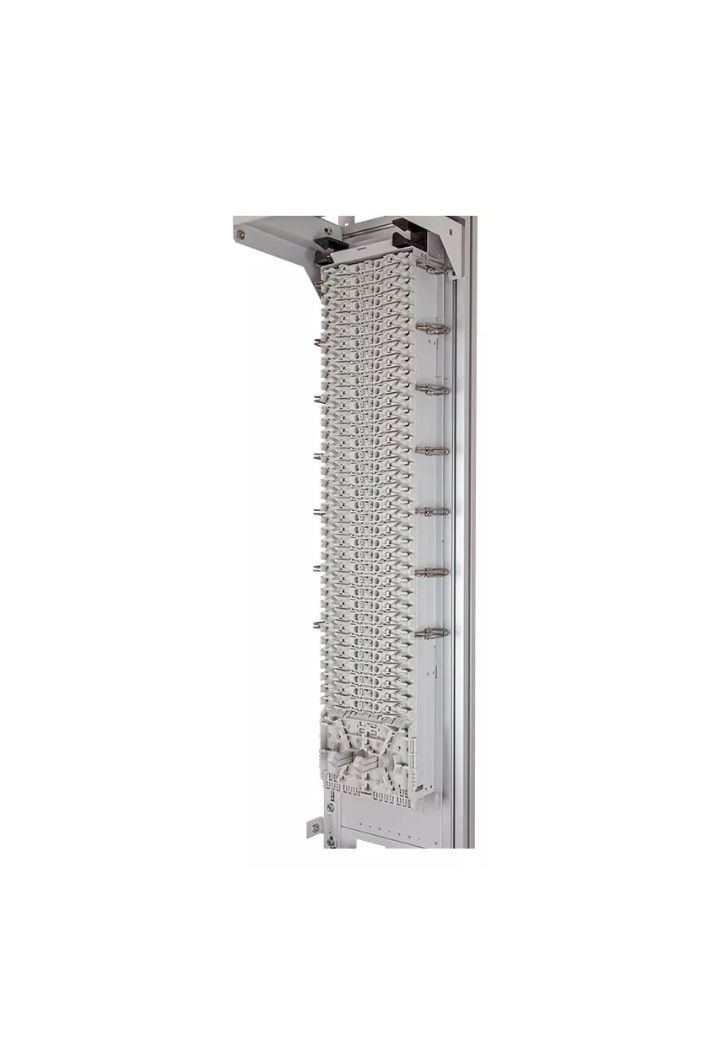

*Capacity of up to 1,728 splices (for KM 4 and KM 9).
*Capacity of up to 432× SC / 864× LC connector (for KM 5 without the ranging management).
*Capacity of up to 576× SC / 1,152× LC connector (for KM 7 without the ranging management).

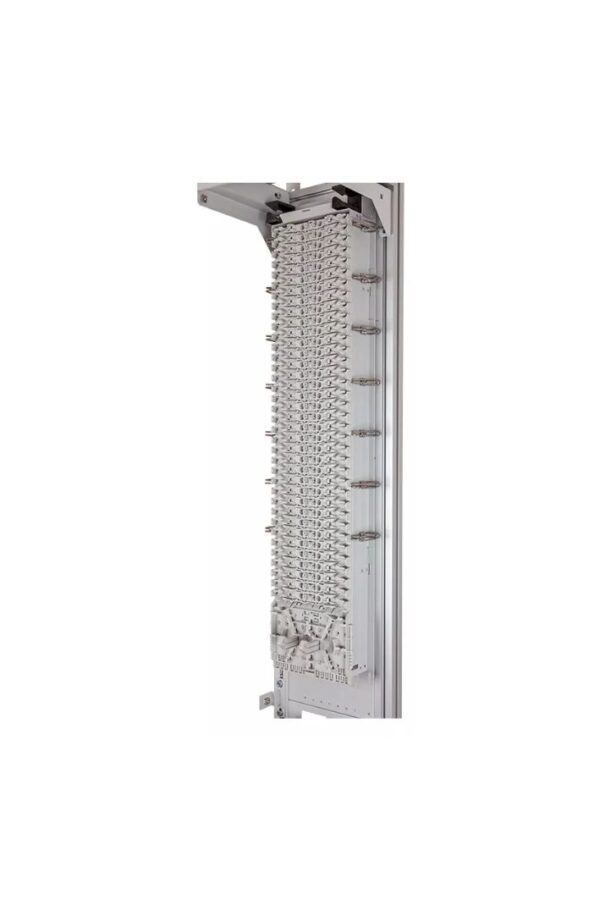

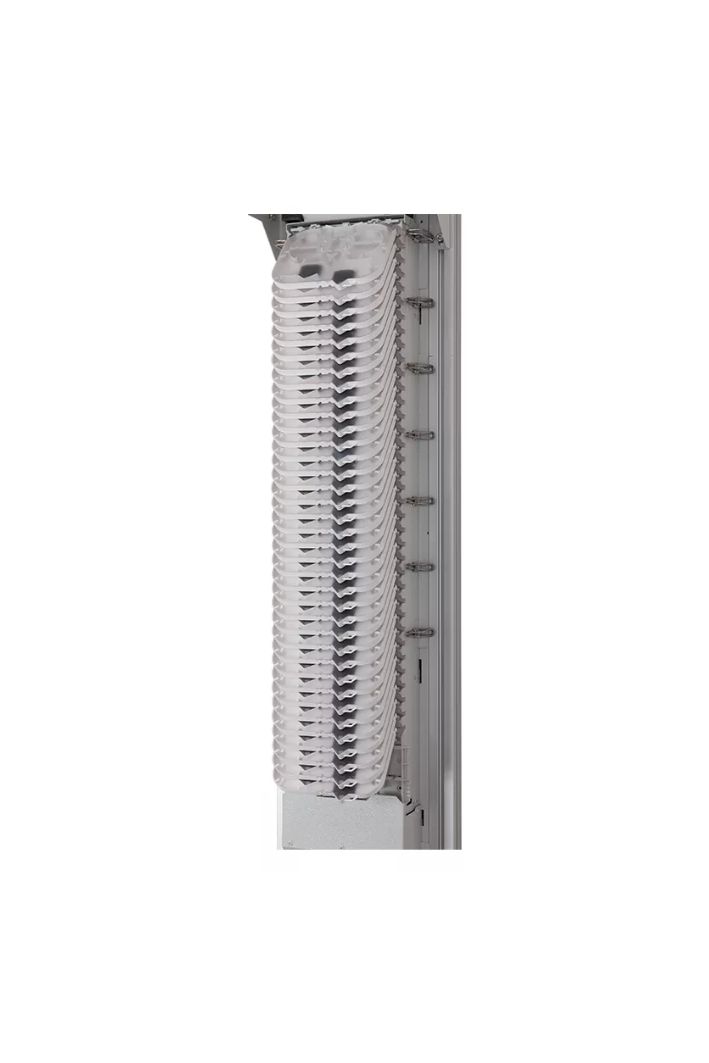

*Ability to assemble only the Subrack part or the ranging management.

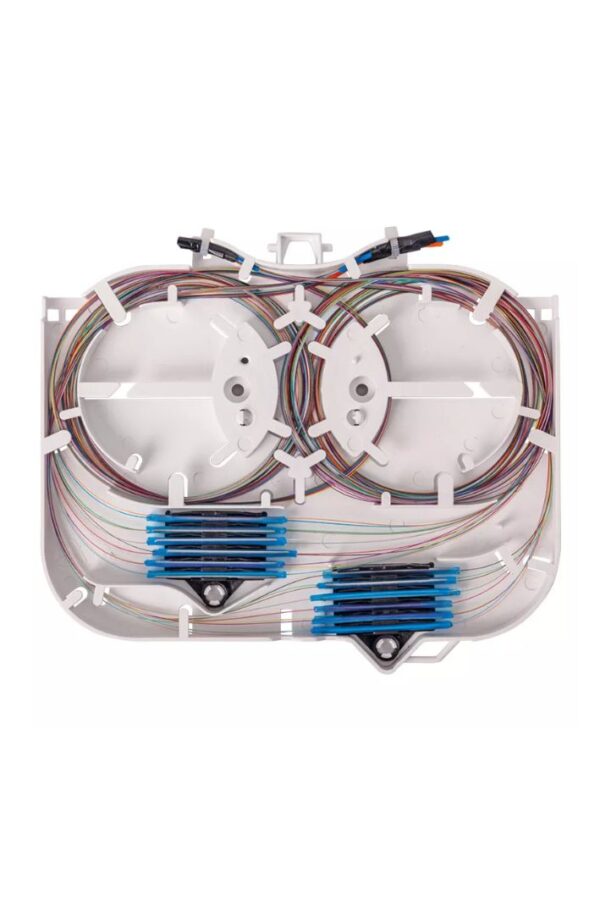

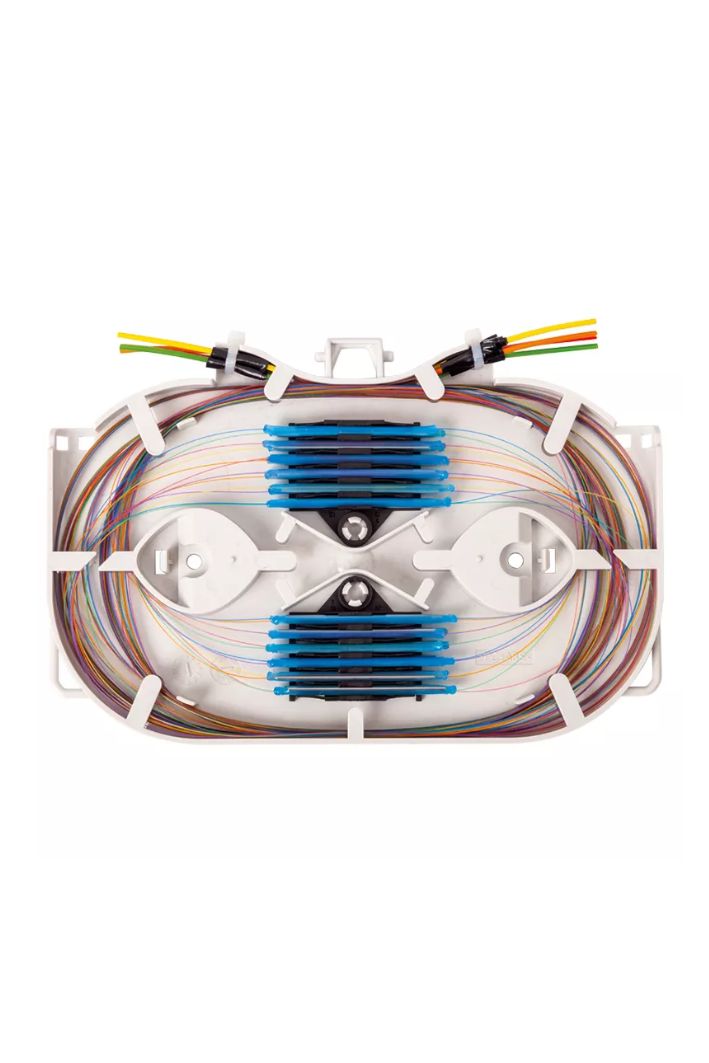

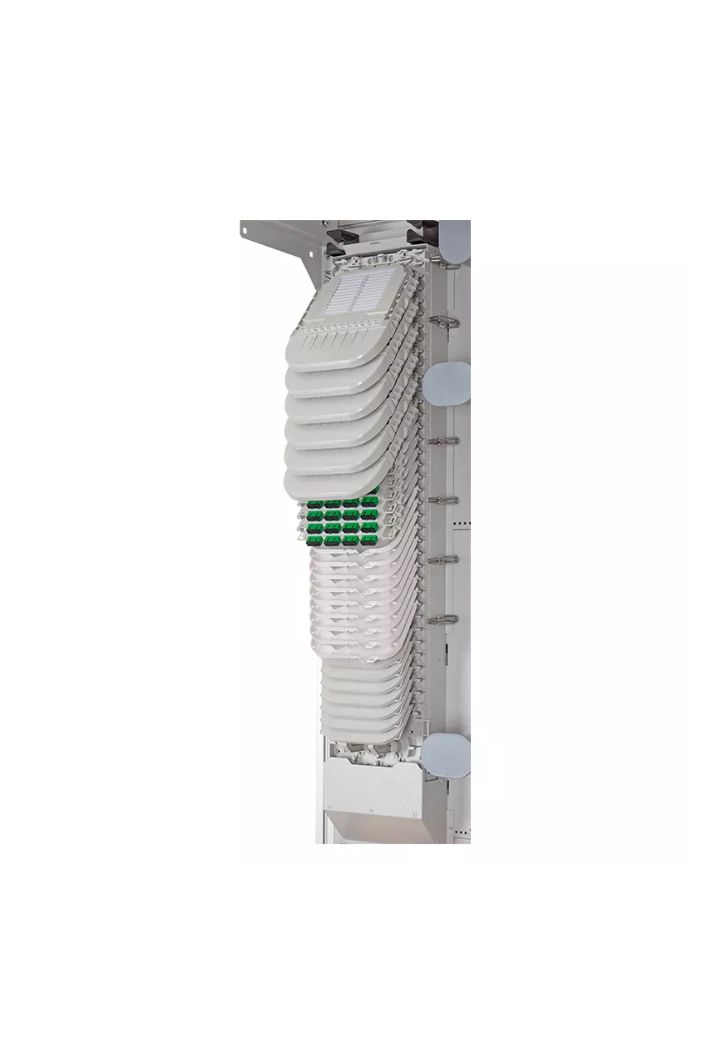

*Ability to mix & match the Fiber Optic Trays KM 4, KM 5, KM 6, KM 7, KM 9.

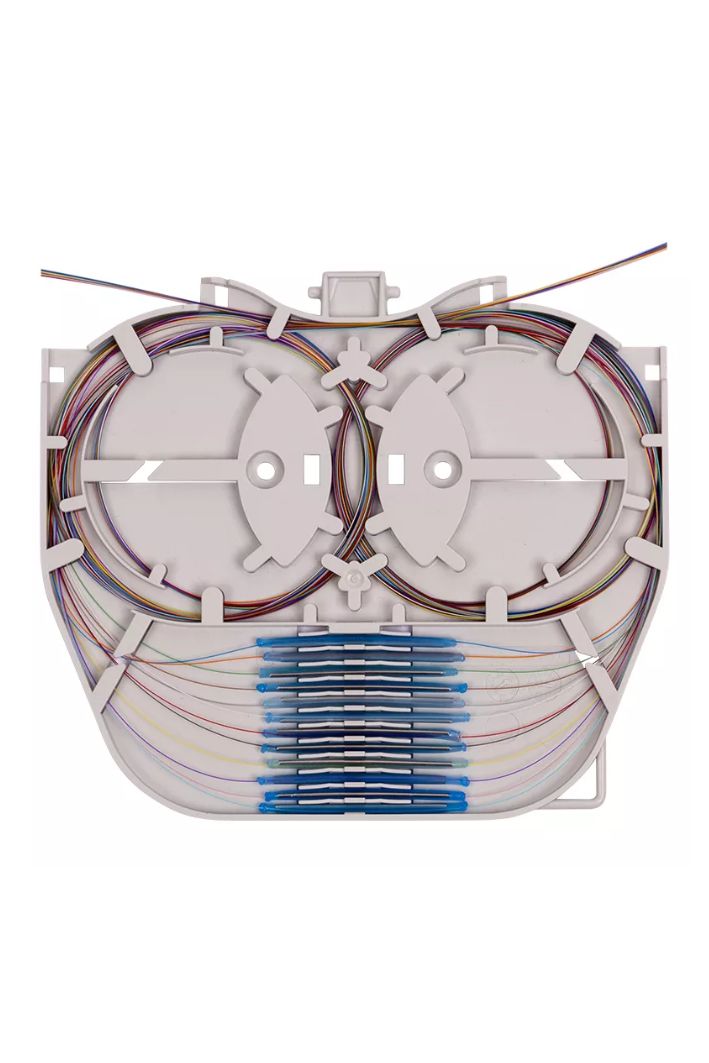

*KM 4 and KM 6 for up to 24 splices.

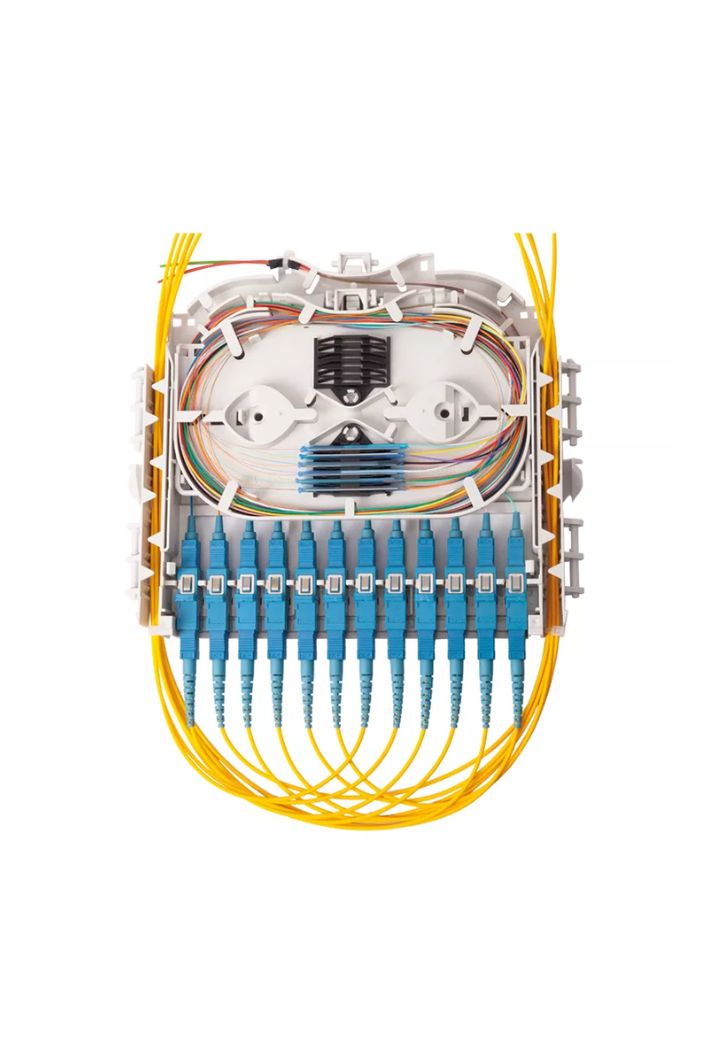

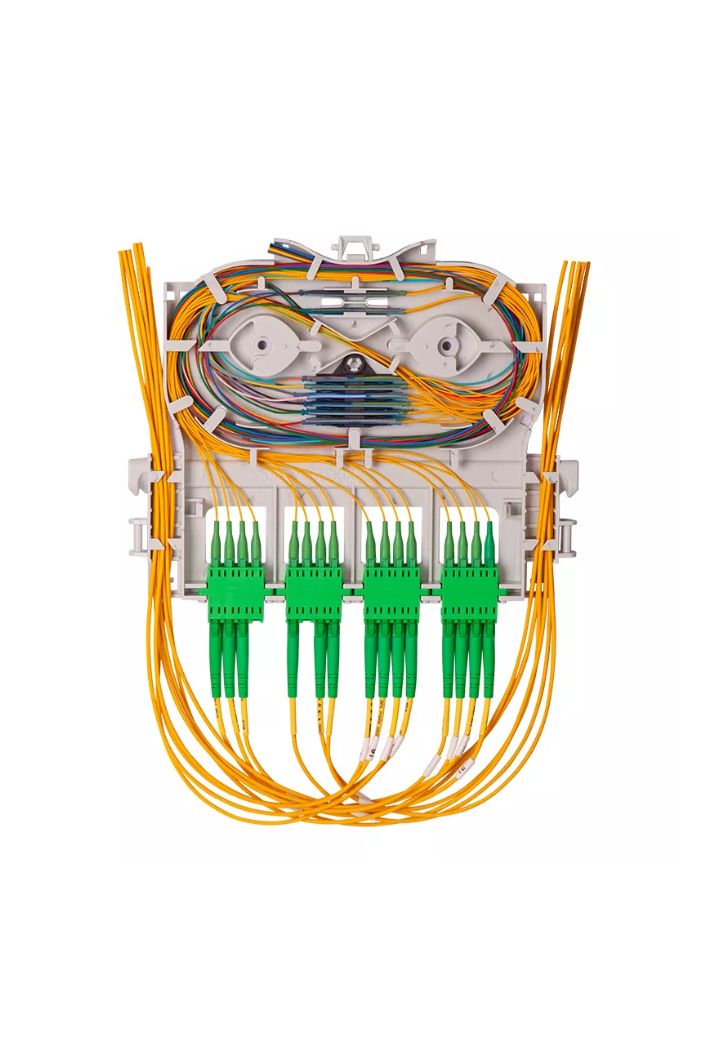

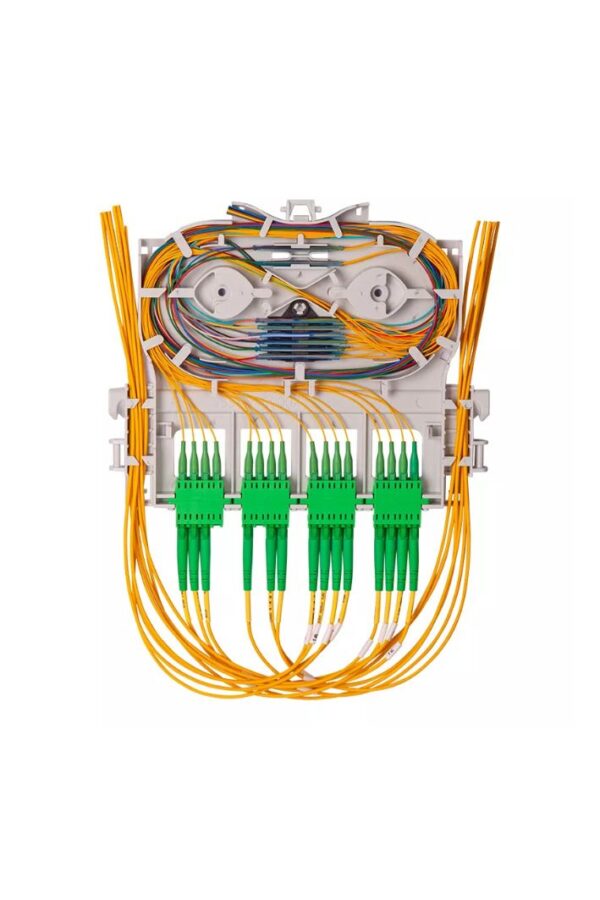

*KM 5 for up to 12× SC / 24× LC connector.
*KM 7 for up to 8× SC / 16× LC connector (for GPON).
*KM 9 for up to 12 splices.
*Uniform patch cord length of 4 m.

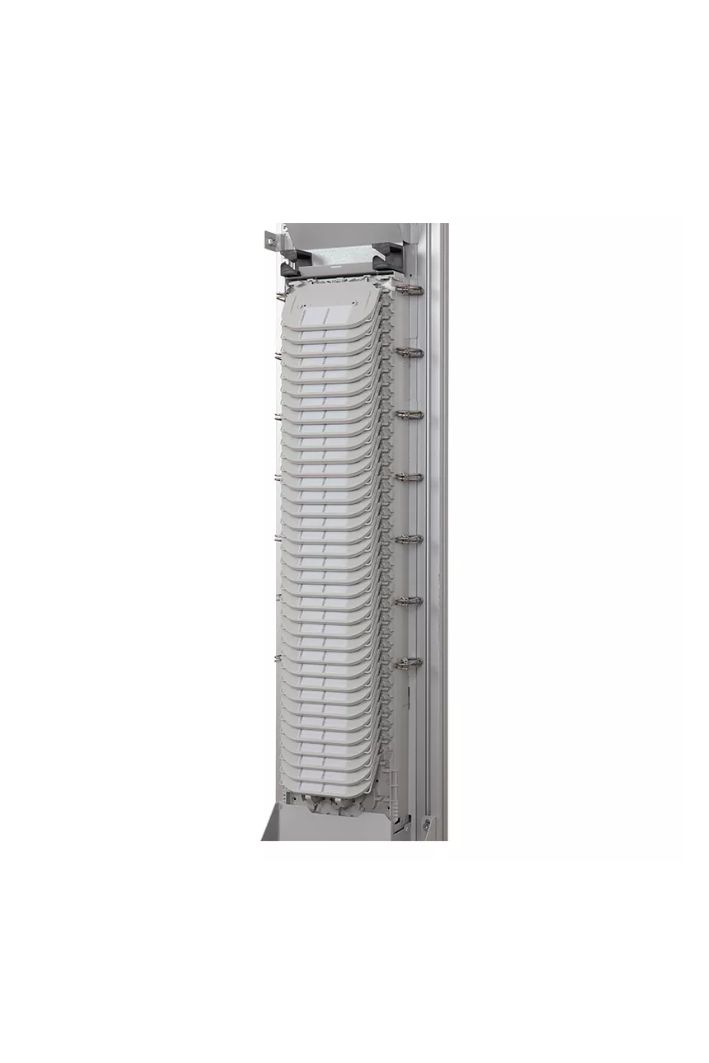

*Ability to gradually add trays as required.
*Modular solution without cable splitter functionality.
*Optional placing of PLC Splitters (outside a tray).
*Ability to stack the cabinets sideways or back to back.

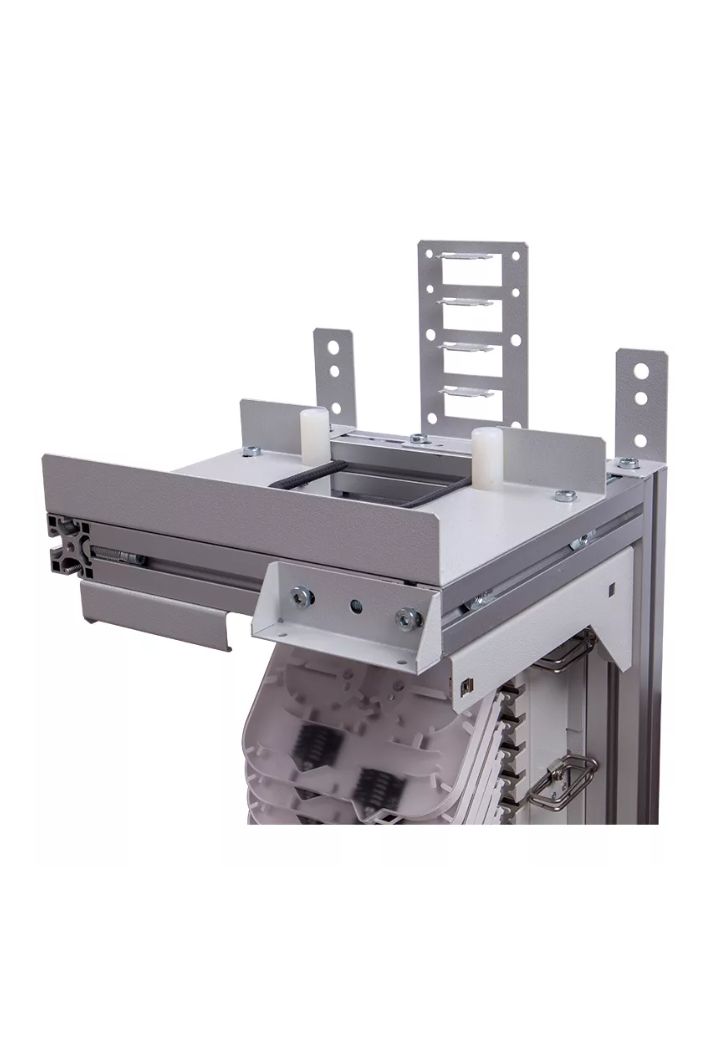

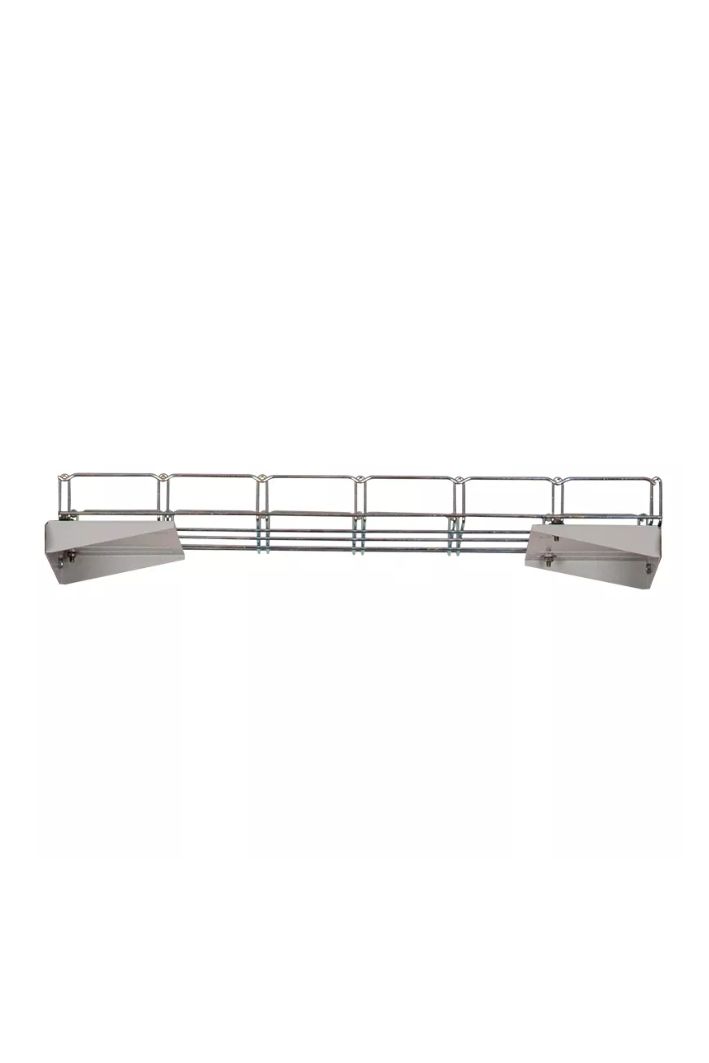

*Roof mounted cable tray and access.
*Increased corrosion resistance (aluzinc).
*FibeRoadTM System compatible.
*Suitable for ribbon fibers.
*Suitable for all types of networks.
*Inputs / Outputs (quantity × range) 2× (230 × 55) mm.
*Material painted steel sheet (aluzinc).
*Color light gray RAL 7035.

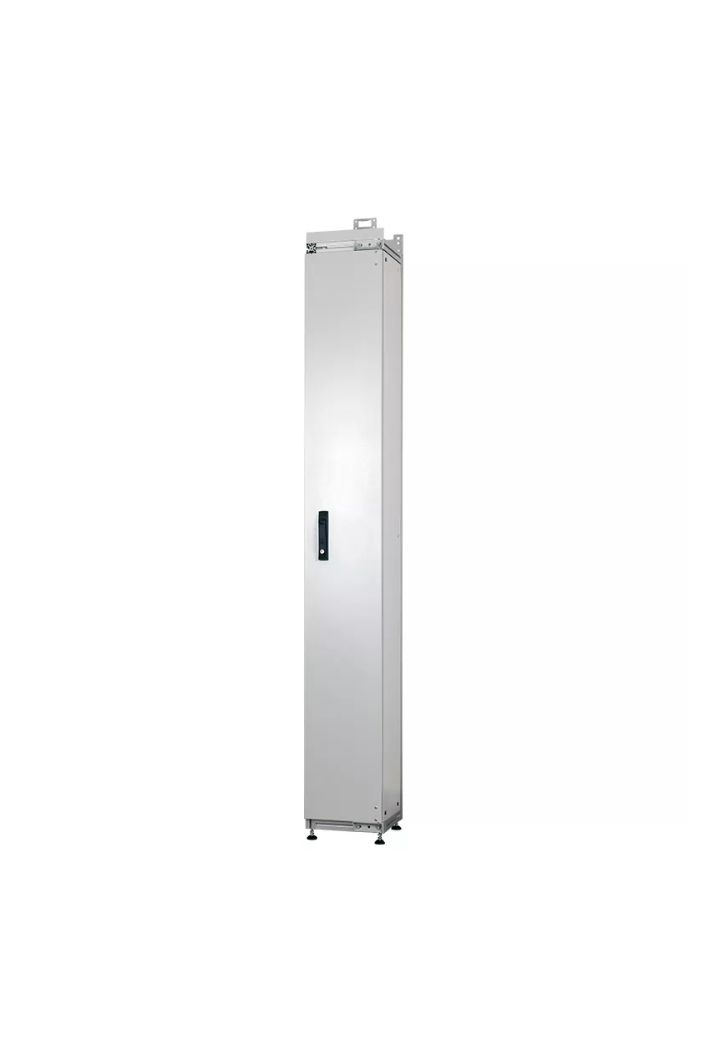

*Dimensions (H × W × D) 2,200 × 300 × 300 mm.
*Flat Pack Dimensions (H × W × D) 2,350 × 303 × 85 mm.
*Flat Pack Weight 28 kg.
*Environment indoor.
*Number of Splices 1–12
13–24
25–48
49–72
73–96
97–144
145–288
289–576
577–864
865 and more.
*Number of Connectors 1–12
13–24
25–48
49–72
73–96
97–144
145–288
289–576
577–864
865 and more.
Connector Type LC, SC.
