Industrial Gigabit Ethernet Switch with 8 RJ45 and 2 SFP Ports, DIN Rail Mount

121.43 € without VAT

Industrial Gigabit Ethernet Switch is designed for reliable network operation in demanding industrial and outdoor environments. The switch features 8 Gigabit Ethernet RJ45 ports and 2 SFP slots, allowing the installation of fiber optic modules according to the required transmission distance and fiber type. This enables seamless integration of copper and fiber optic networks while ensuring stable, high-speed data transmission over long distances.
Designed for harsh operating conditions, the switch features a rugged IP40 aluminum enclosure, a wide operating temperature range, redundant power inputs, and protection against electromagnetic interference and electrical surges. It is suitable for use in manufacturing plants, power and utility facilities, transportation infrastructure, surveillance systems, and outdoor communication cabinets.
The device supports DIN rail or wall mounting, making it easy to integrate into industrial control panels, electrical cabinets, and telecommunications enclosures. Dual 12–52 V DC redundant power inputs ensure uninterrupted operation in applications where network availability is critical.
The switch is ideal for IP surveillance systems, industrial automation, PLC controllers, wireless communication equipment, network aggregation points, access control systems, and other Gigabit Ethernet applications.
Key Features
• Gigabit Ethernet (10/100/1000 Mbps)

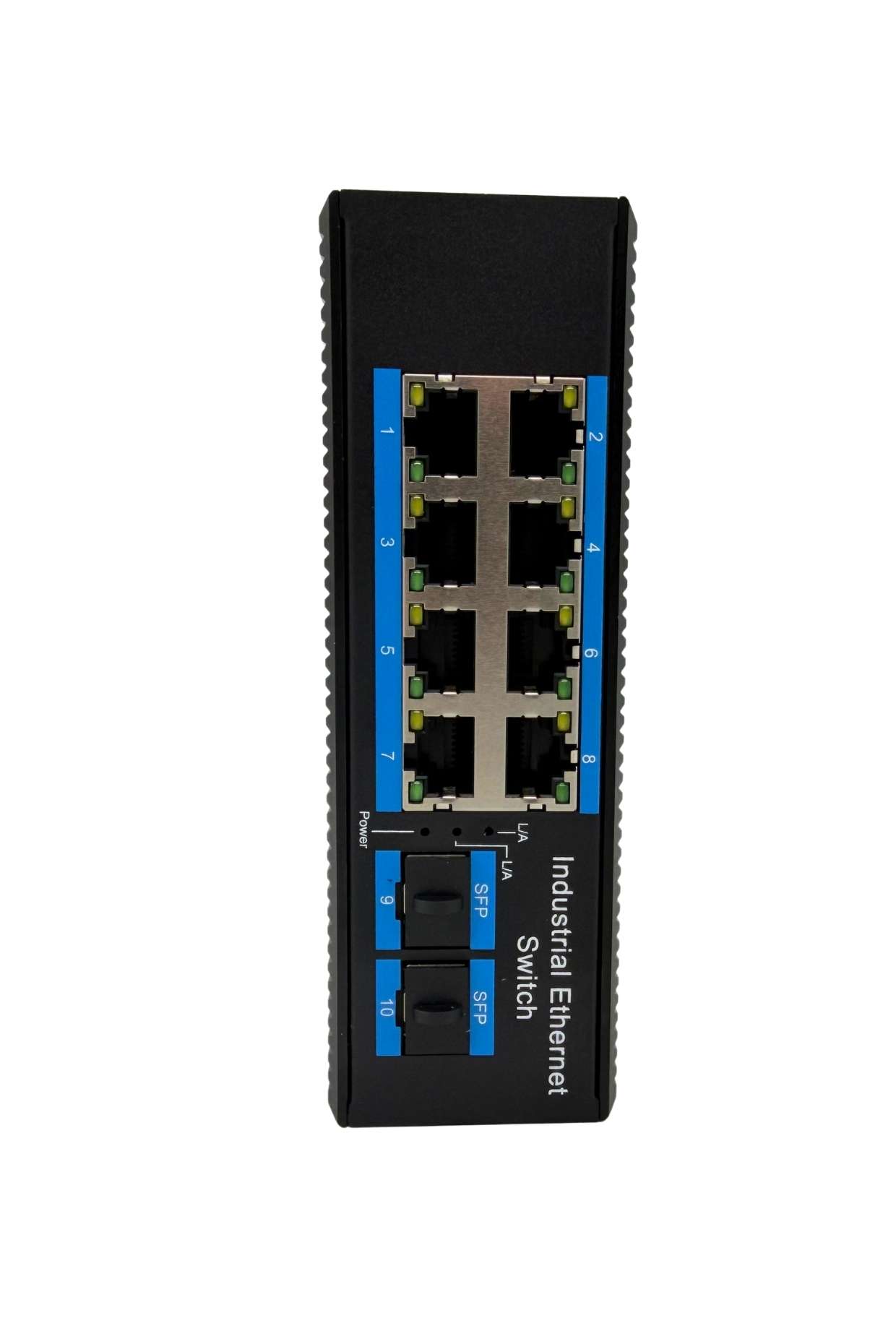

• 8 × RJ45 10/100/1000Base-T ports
• 2 × SFP slots for fiber optic modules
• Auto MDI/MDI-X and automatic speed negotiation
• Non-blocking wire-speed switching
• Supports Jumbo Frames up to 9000 bytes
• Rugged IP40 aluminum housing
• DIN rail or wall mounting

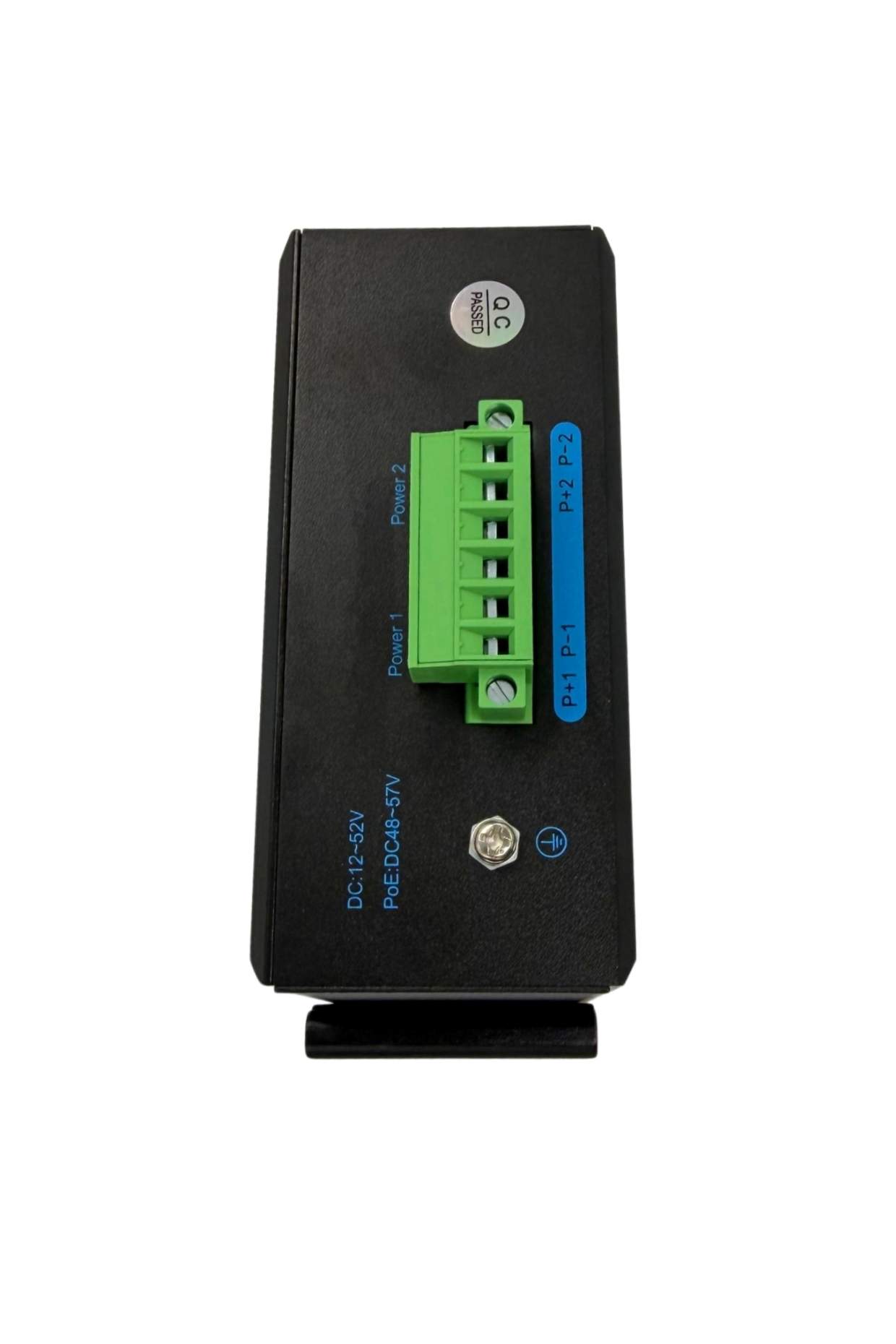

• Wide-range power input: 12–52 V DC (dual redundant power inputs)
• Operating temperature: -40 °C to +80 °C
• ESD, EFT and surge protection
• Shock and vibration resistant
• Low power consumption (<3 W)Technical Specifications
RJ45 ports: 8 × 10/100/1000Base-T
Fiber ports: 2 × SFP
Network standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Switching capacity: 28 Gbps
Packet forwarding rate: 10.5 Mpps
MAC address table: 2K
Jumbo Frame: up to 9000 bytes
Mounting: DIN rail or wall mount
Enclosure: IP40 aluminum housing

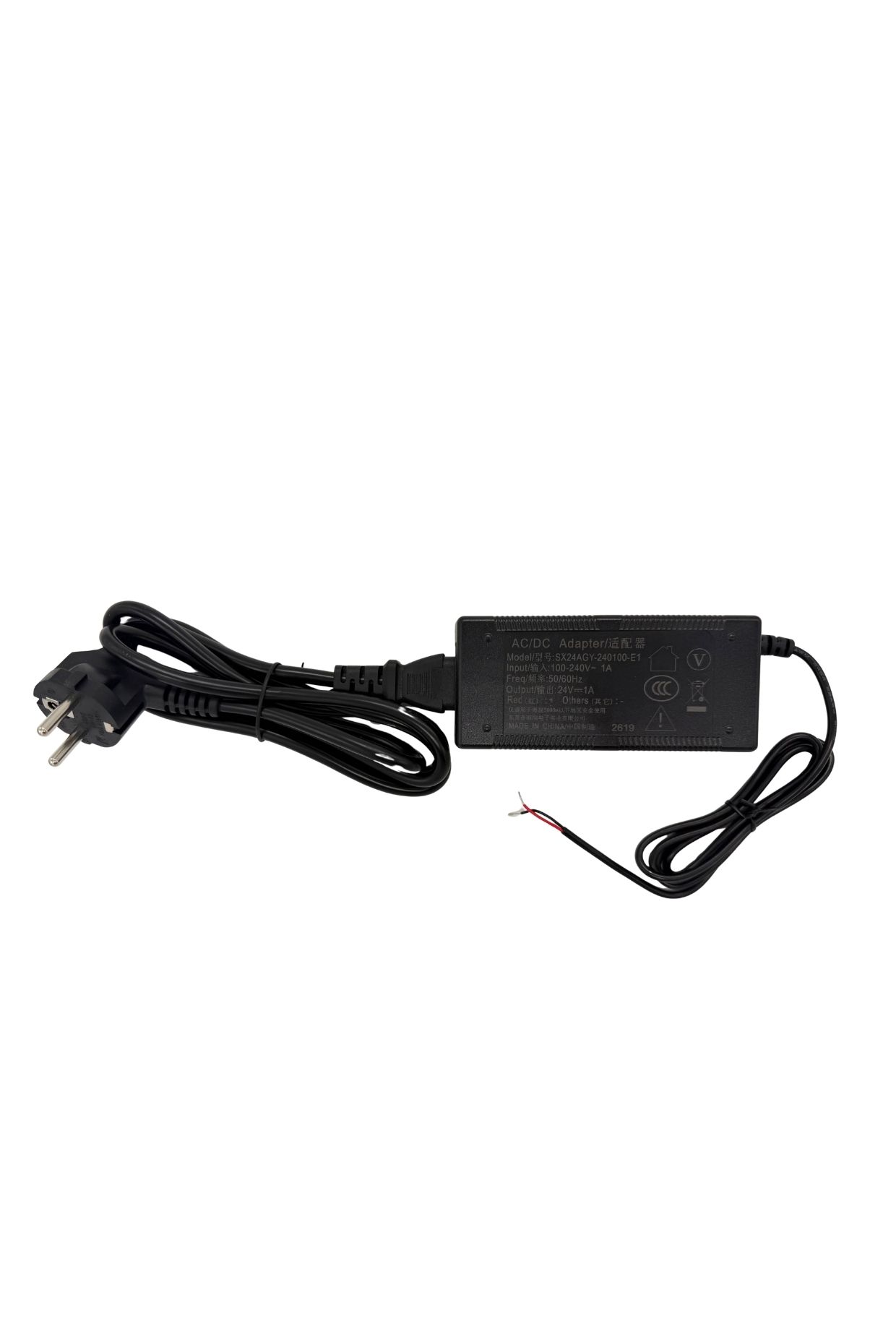

Power supply: 12–52 V DC (redundant) included
Power consumption: <3 W Operating temperature: -40 °C to +80 °C Protection: ESD, EFT, Surge Dimensions: 143.7 × 103 × 44.2 mm Weight: 0.36 kgApplications
• CCTV surveillance systems
• Industrial automation
• Manufacturing facilities
• Power and utility installations
• Transportation infrastructure
• Outdoor communication cabinets
• Wi-Fi access points
• Industrial Ethernet networks
• PLC and SCADA systems
• Telecommunications infrastructure
