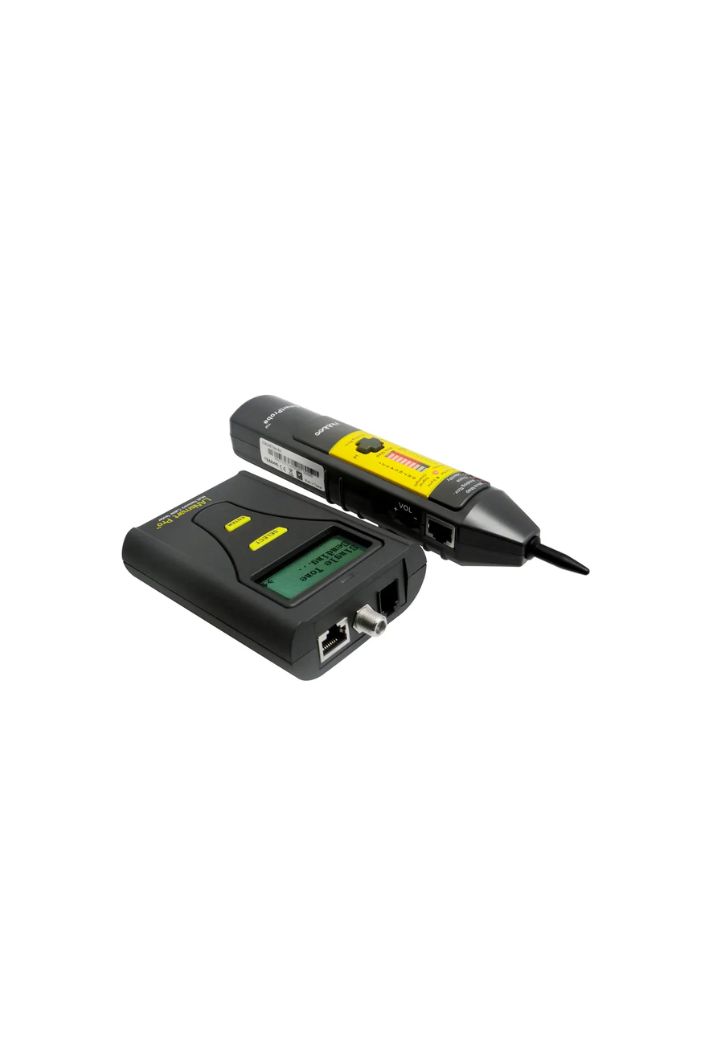

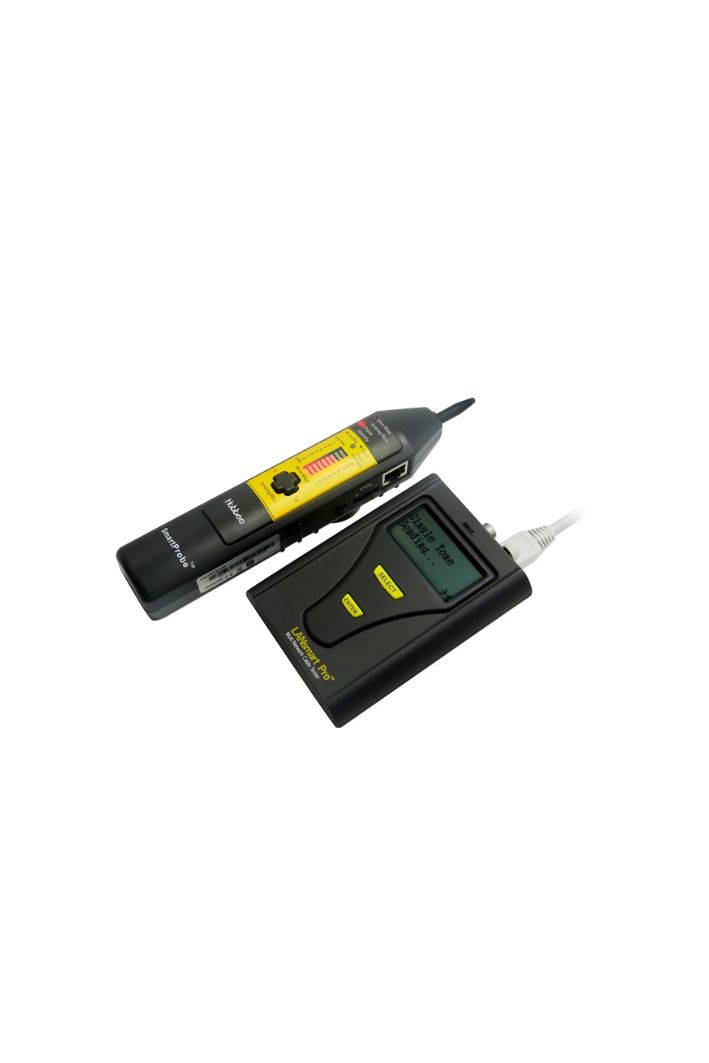

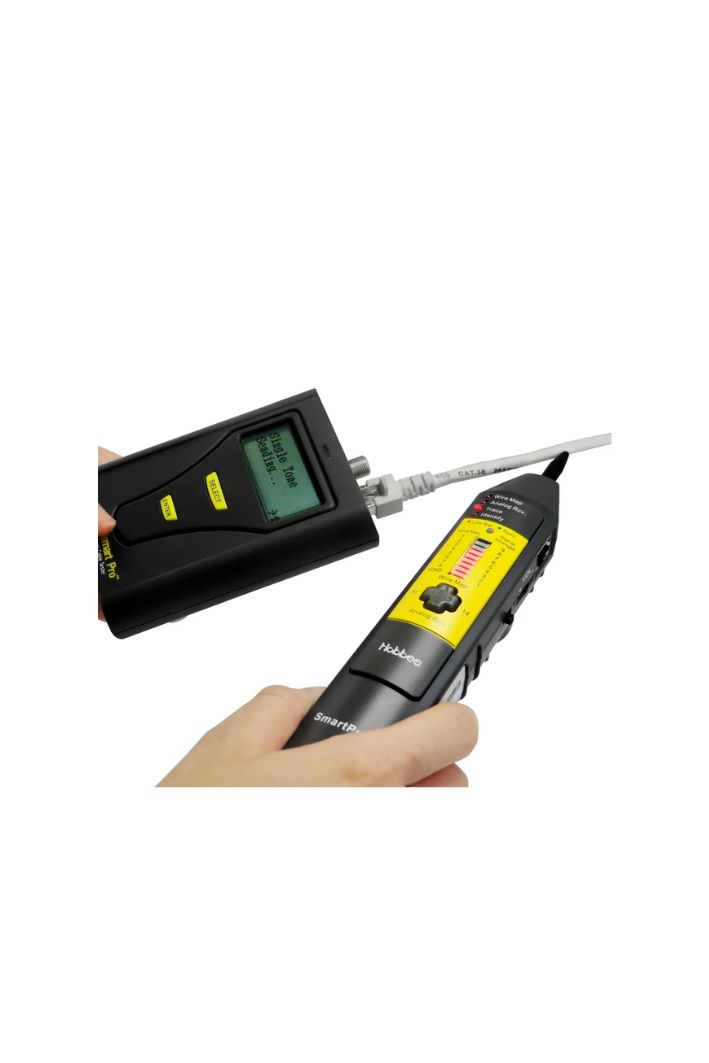

HOBBES LANsmart Pro & SmartProbe Kit

361.90 € without VAT

The set consisting of the LANsmart Pro + Digital Probe Kit offers the following test options in addition to the LANsmart Pro:
– Finds and identifies cables quickly and accurately with the test probe.
– Clearly indicates the reception strength of the audio signal in digital audio quality on a 9-digit LED scale. LED display and speaker can be used as indicators for cable identification.
Functions:
– All-in-one tester: wiring diagram, quick test, tone generator, cable length measurement, port finder and error localization.
– Tests for faults: open, short-circuited, split, twisted and crossed cables.
– Pin-to-pin wiring diagram Pin-to-pin method for easy finding of faulty wiring.
– Individually identifiable remote units.
– Shows the distance to the cable fault and thus facilitates fault location.
– Ideal for Cat5, Cat5E and Cat6 cables for measurement without remote unit.
– Tests coax, telephone (2-/4-/6-pole), and data cables.
– Self-calibration function for high measurement accuracy when testing non-standard cables.
– Shows the cable length in meters and feet.
– Quick test function, port finder function, battery indicator.
Specifications:
– Display: 128*64 Dot Matrix LCD / –.
– connections: RJ45/RJ11/COAX (main and remote unit) / RJ45.
– Accuracy: ±2m for less than 10m / ± 5% for over 10m.
– Test range: 1.2-300m.
– Split pairs Troubleshooting: minimum 1.2m.
– Tone Generator: Analogue (1KHz), Digital (Single and Dual) Tone / receives digital signal from 256003PRO and 1KHz analogue signal from traditional tone generator.
– Operating temperature: 0°C – 50°C.
– Storage temperature: -30°C – 50°C.
– Humidity: 10% to 90%.
– Weight: Main unit: 120g / 98g; Remote unit: 20g / –.
– Dimensions: Main unit 120 x 80 x 33mm / 205mm x 36mm x 36mm; Remote unit: 44 x 42 x 28.5mm / –.
– Energy consumption: DC 6V; 4x AAA alkaline batteries / 9 V battery; Consumption: approx. 45mA~Max. 70mA V.
